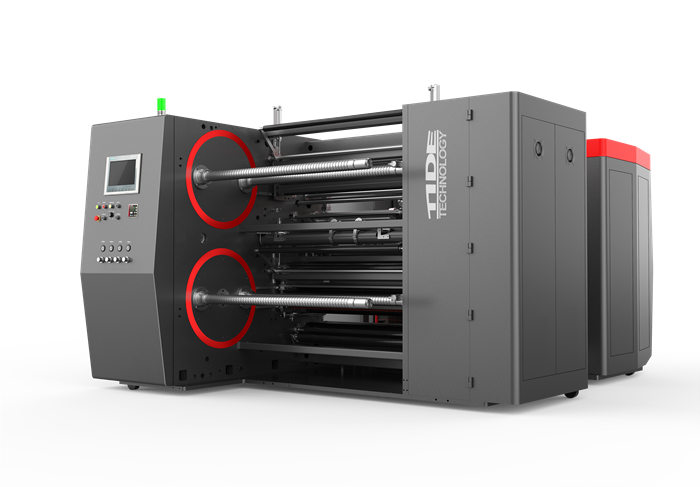

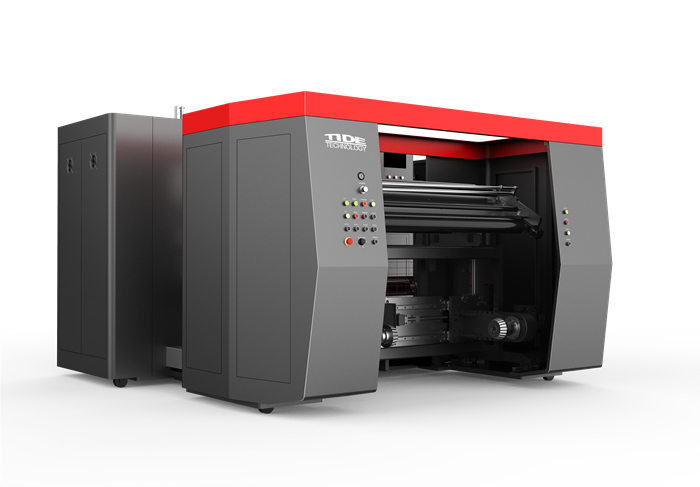

LS800 Digital Control Hi-speed Slitter

CHARACTERISTICS

· Slitting for film, paper or laminated material
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Center rewinding mode
· Marking the rewinding core position by laser
· Unloading the finished rolls automatically
· Maintenance information on touch screen

· Unwinding roll loading sami-automatically
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air friction shafts for rewinding
· Switch the rewinding shafts automatically
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA

	Standard	Option
· Width of working face:	1300mm	1800mm(max)
· Diameter of unwinding:	φ800mm(max)	φ1200mm(max)
· Thickness of material:	12μm-150μm	more than 150μm
· Diameter of rewinding:	φ600mm(max)	--
· Width of rewinding:	50mm(min)	25mm(min)
· Working speed:	800m/min(max)	1000m/min(max)

OPTION

* Expander roller
* Circle knife slitting mode
* Air hole on line
* Gap roller rewinding mode
* Locating the razor position automatically
* Automatically tape system for finished rolls and new cores

* Dancing roller
* Easy tear on line
* Stop by pictures accounting
* 6 inch rewinding mode
* Link to ERP
* Automatically web cutting system
